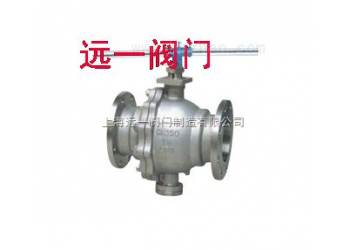

產品結構特點Construction Features

金屬硬密封球閥經過特殊工藝處理的球體與閥座，特別適用于較高溫度及含各種粉塵與固體顆粒的介質。
1、采用特別設計的補償性可動金屬閥座結構，密封可靠。
2、本系列球閥應按規定流向使用。
3、本系列球閥可配多種驅動裝置。

process through special techniques, the globe body and valve seat are especially applicable for high-temperatures and the medium containing dusts and solid particles.
1.The specially-designed compensatory movable valve seat construction made from metal is of great reliability in its sealing performance.
2.The ball valve series should be applied in accordance to the specified flow direction.
3.Multiple driving devices could be prepared for the series.

主要零件及材質Main Parts and Materials

序號 N。	零件名稱 Accessory name	材質 Material
		CB	ASTM
1	閥體 Body	WCB	A216-WCB
2	閥座 Seat	1Cr18Ni9Ti	304
3	球體 Ball	2Cr13	A276-420
4	螺釘 Screw nial	35	A193-B7
5	手柄 Wrench	瑪鋼	A47-667 Gr.32510
6	擋圈 Ring	65Mn	AISI 1066
7	閥桿 Stem	1Cr13	A276-410
8	定位片 Locating piece	25	A105
9	填料壓蓋 Gland	WCB	A216-WCB
10	填料 Stuffing	柔性石墨 graphite PTFE	柔性石墨 graphite PTFE
11	墊片 Gasket	柔性石墨 +不銹鋼 graphite+stainless steel	B12.10-304/F.G
12	螺母 Nut	35	A194-2H
13	螺柱 Stud	35CrMoA	A193-B7
14	座墊 Gasket	1Cr18Ni9Ti	304
15	彈簧 Spring	60Si2Mn	AISI 9260

產品性能規范 Performance Specification of the Products

壓力等級 Pressure Rating
		1.6	2.5	4.0	6.4	10.0	1.50	300	400	600
試驗壓力 Test Pressure （MPa）	殼體試驗 Shell Test	2.4	3.75	6.0	9.6	15.0	3.03	7.5	10.2	15.0
	密封試驗 Pressure Test	1.76	2.75	4.4	7.04	11.0	2.2	5 5	7.48	11.0
適用工況 Applicable Operating Mode	適用介質 Applicable Mediums	紙漿、漿料、粉塵及含各種固體顆粒的介質 Pulps like paper pulp, dusts, and medium with solid particles.
	適用溫度 Applicable Temperature	-196～≤550℃
適用規范 Applicable specification	設計制造按 The designing and manufacturing work follows	GB12237-89   API 6D  JPI7S-48
	法蘭尺寸按 Flange dimension according	JB79-59、GB9113、HG20592-97        ANSI B16.5          JIS B2212-2214
	結構長度按 Physical dimension according	GB12221-89   ANSI B16.10   AIS B2002
	檢驗試驗按 Test and inspection according	JB/T9092-99            API 598
